JasperReport 集成
目录
依赖
版本根据springboot版本决定
<dependency>
<groupId>net.sf.jasperreports</groupId>
<artifactId>jasperreports</artifactId>
</dependency>
配置类
@Slf4j
@Configuration
public class JasperReportConfig {
@Value("${mars.report.pdf.path:}")
private String pdfPath;
public static String PDF_PATH;
public static DataSource DATA_SOURCE;
public JasperReportConfig(DataSource dataSource) {
if (StrUtil.isBlank(pdfPath)) {
this.pdfPath = System.getProperty("user.home");
}
PDF_PATH = pdfPath;
DATA_SOURCE = dataSource;
log.info(">>>>>> 加载报表pdfPath: {}", pdfPath);
}
}
工具类
@Slf4j
public class JasperReportUtil {
private static final String PDF_EXPORT_PATH = "%s/%s.pdf";
/**
* 生成pdf报表
*
* @param reportInputStream 报表（.jrxml）
* @param parameters 报表参数
* @return pdf路径
*/
public static String generatePdf(InputStream reportInputStream, Map<String, Object> parameters) {
if (reportInputStream == null) {
throw new BusinessException("报表模板不能为空");
}
try(Connection connection = getConnection()) {
JasperReport jasperReport = JasperCompileManager.compileReport(reportInputStream);
JasperPrint jasperPrint = JasperFillManager.fillReport(jasperReport, parameters, connection);
String filePath = String.format(PDF_EXPORT_PATH, JasperReportConfig.PDF_PATH, JasperReportUtil.buildFileName(jasperReport.getName()));
JasperExportManager.exportReportToPdfFile(jasperPrint, filePath);
return filePath;
} catch (JRException | SQLException e) {
log.error("生成pdf报表失败", e);
throw new BusinessException(e.getMessage());
}
}
public static void printPdf(InputStream reportInputStream, Map<String, Object> parameters, HttpServletResponse response) {
if (reportInputStream == null) {
throw new BusinessException("报表模板不能为空");
}
OutputStream out = null;
try (Connection connection = getConnection()){
JasperReport jasperReport = JasperCompileManager.compileReport(reportInputStream);
JasperPrint jasperPrint = JasperFillManager.fillReport(jasperReport, parameters, connection);
//以附件形式保存文件
String generateFileName = jasperReport.getName() + ".pdf";
//设置http的文件类型及编码方式
response.setContentType("application/pdf;charset=utf-8");
//设置下载的文件名称 名称含有中文的话需要用URLEncoder进行编码
response.setHeader("content-disposition", "attachment;filename=" + URLEncoder.encode(generateFileName, "utf-8"));
out = response.getOutputStream();
JasperExportManager.exportReportToPdfStream(jasperPrint, out);
} catch (JRException e) {
log.error("生成pdf报表失败", e);
throw new BusinessException(e.getMessage());
} catch (IOException | SQLException e) {
throw new BusinessException(e);
} finally {
if (out != null) {
try {
out.close();
} catch (IOException e) {
log.error("生成pdf关闭流错误", e);
}
}
}
}
public static void printXlsx(InputStream reportInputStream, Map<String, Object> parameters, HttpServletResponse response) {
if (reportInputStream == null) {
throw new BusinessException("报表模板不能为空");
}
OutputStream out = null;
try (Connection connection = getConnection()){
JasperReport jasperReport = JasperCompileManager.compileReport(reportInputStream);
JasperPrint jasperPrint = JasperFillManager.fillReport(jasperReport, parameters, connection);
//以附件形式保存文件
String generateFileName = jasperReport.getName() + ".xlsx";
response.setContentType("application/vnd.ms-excel");
response.setHeader("Content-disposition", "attachment; filename="
+ URLEncoder.encode(generateFileName, "utf8"));
SimpleXlsxReportConfiguration conf = new SimpleXlsxReportConfiguration();
conf.setWhitePageBackground(false);
conf.setDetectCellType(true);
JRXlsxExporter exporter = new JRXlsxExporter();
exporter.setConfiguration(conf);
//设置输入项
ExporterInput exporterInput = new SimpleExporterInput(jasperPrint);
exporter.setExporterInput(exporterInput);
//设置输出项
out = response.getOutputStream();
OutputStreamExporterOutput exporterOutput = new SimpleOutputStreamExporterOutput(out);
exporter.setExporterOutput(exporterOutput);
exporter.exportReport();
} catch (IOException | JRException e) {
log.error("生成excel报表失败", e);
throw new BusinessException(e);
} catch (SQLException e) {
throw new RuntimeException(e);
} finally {
if (out != null) {
try {
out.close();
} catch (IOException e) {
log.error("生成excel关闭流错误", e);
}
}
}
}
private static String buildFileName(String fileName) {
// yyyyMMddHHmmssSSS 暂时认为时间到毫秒，文件不会重复
return fileName + DateUtil.format(DateUtil.dateSecond(), DatePattern.PURE_DATETIME_MS_PATTERN);
}
private static Connection getConnection() {
DataSource dataSource = JasperReportConfig.DATA_SOURCE;
if (dataSource == null) {
throw new BusinessException("获取报表数据源失败，数据源为空");
}
try {
Connection connection = dataSource.getConnection();
if (connection == null) {
throw new BusinessException("获取报表数据库连接失败,数据库连接为空");
}
return connection;
} catch (SQLException e) {
throw new BusinessException("获取报表数据库连接失败", e);
}
}

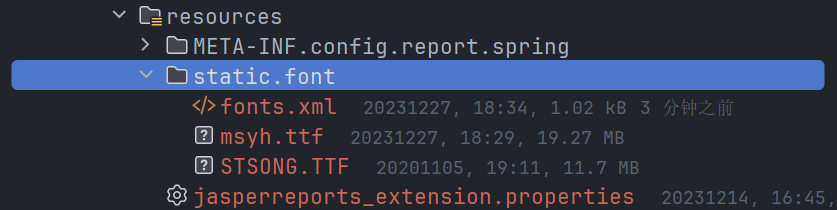

中文显示
- 在 resources 下创建jasperreports_extension.properties，内容如下
net.sf.jasperreports.extension.registry.factory.simple.font.families=net.sf.jasperreports.engine.fonts.SimpleFontExtensionsRegistryFactory
net.sf.jasperreports.extension.simple.font.families.lobstertwo=static/font/fonts.xml
在 resources 下创建 static/front 文件夹
在 font 下创建 fronts.xml，内容如下
<?xml version="1.0" encoding="UTF-8"?>
<fontFamilies>
<fontFamily name="华文宋体">
<normal>static/font/STSONG.TTF</normal>
<bold>static/font/STSONG.TTF</bold>
<italic>static/font/STSONG.TTF</italic>
<boldItalic>static/font/STSONG.TTF</boldItalic>
<pdfEncoding>Identity-H</pdfEncoding>
<pdfEmbedded>true</pdfEmbedded>
<exportFonts>
<export key="net.sf.jasperreports.html">'华文宋体', Arial, Helvetica, sans-serif</export>
<export key="net.sf.jasperreports.xhtml">'华文宋体', Arial, Helvetica, sans-serif</export>
</exportFonts>
</fontFamily>
<fontFamily name="微软雅黑">
<normal>static/font/msyh.ttf</normal>
<bold>static/font/msyh.ttf</bold>
<italic>static/font/msyh.ttf</italic>
<boldItalic>static/font/msyh.ttf</boldItalic>
<pdfEncoding>Identity-H</pdfEncoding>
<pdfEmbedded>true</pdfEmbedded>
</fontFamily>
</fontFamilies>
- 在 front 下存放放 ttf 字体
Connection引发的血案
由于jasper官方提供的api需要指定Connection，所以想当然的DataSource.getConnection() ，刚才开测试报表正常，但是过段时间发现报表无法打印，并且服务开始报错，异常信息如下:
java.lang.NullPointerException: null
at com.mysql.jdbc.ConnectionImpl.getServerVersion(ConnectionImpl.java:3312) ~[mysql-connector-java-5.1.25.jar!/:?]
at com.mysql.jdbc.DatabaseMetaData.getDatabaseProductVersion(DatabaseMetaData.java:3015) ~[mysql-connector-java-5.1.25.jar!/:?]
at com.mchange.v2.c3p0.impl.NewProxyDatabaseMetaData.getDatabaseProductVersion(NewProxyDatabaseMetaData.java:356) ~[c3p0-0.9.5.2.jar!/:0.9.5.2]
at net.sf.jasperreports.engine.query.JRJdbcQueryExecuter.<init>(JRJdbcQueryExecuter.java:155) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
at net.sf.jasperreports.engine.query.JRJdbcQueryExecuterFactory.createQueryExecuter(JRJdbcQueryExecuterFactory.java:219) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
at net.sf.jasperreports.engine.query.QueryExecuterFactory.createQueryExecuter(QueryExecuterFactory.java:109) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
at net.sf.jasperreports.engine.fill.JRFillDataset.createQueryDatasource(JRFillDataset.java:1260) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
at net.sf.jasperreports.engine.fill.JRFillDataset.initDatasource(JRFillDataset.java:732) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
at net.sf.jasperreports.engine.fill.BaseReportFiller.setParameters(BaseReportFiller.java:457) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
at net.sf.jasperreports.engine.fill.JRBaseFiller.fill(JRBaseFiller.java:585) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
at net.sf.jasperreports.engine.fill.BaseReportFiller.fill(BaseReportFiller.java:414) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
at net.sf.jasperreports.engine.fill.JRFiller.fill(JRFiller.java:120) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
at net.sf.jasperreports.engine.fill.JRFiller.fill(JRFiller.java:103) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
at net.sf.jasperreports.engine.JasperFillManager.fill(JasperFillManager.java:530) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
at net.sf.jasperreports.engine.JasperFillManager.fillReport(JasperFillManager.java:954) ~[jasperreports-6.17.0.jar!/:6.17.0-6d93193241dd8cc42629e188b94f9e0bc5722efd]
结合异常堆栈，很明显是没有连上数据库。但是服务开始好用，为什么突然不好用了？
经过一系列的排查：不是驱动->不是mysql连接数、线程池、进程数->what's the fk?
突然想到Datasoure连接池不可能为空，那么Connection怎么可能连不上了呢，难道说...空了？
fk，Datasoure有个东西叫做最大空闲时长，如果超过这个时长。。。。
好吧，以后每次DataSource.getConnection()，剩下的交给Datasoure管理。
